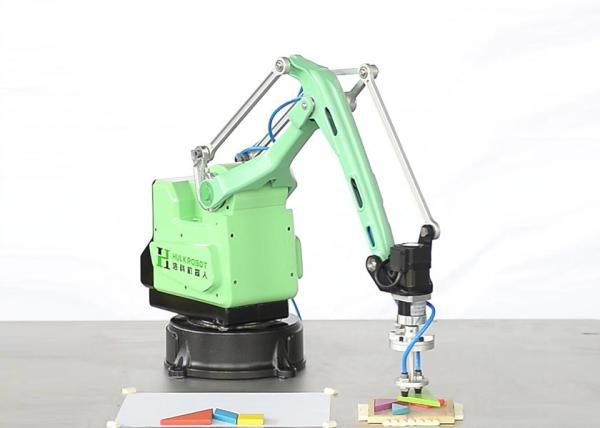

Industrial Multi Axis Robot Arm With High Quality And Speed
Product Parameters:
| Model | HK5404 |
| Working radius | 540mm |
| Number of axis | Multi |
| installation | Floor |
| N.W. | 13kg |
| Position repeatability | ±0.05mm |
| Max playload | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz
Output:DC 24V(400W) |
| External communication | WIFI/Ethernet |
| Application | Picking, Loading, Casting, Polishing Etc |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Axis'Working Range:
| Working envelope | J1 | ±160° |
| J2 | -42°~85° |
| J3 | -20°~100° |
| J4 | ±165° |
| | | |
| Max Speed | J1 | 360°/s |
| J2 | 360°/s |
| J3 | 360°/s |
| J4 | 500°/s |
Affordable price
Professional design based on 1Kg load characteristics to meet the needs of industrial scenes while reducing costs.
Easy installation
No control cabinet,avoid complex wiring,convenient for on-site installation.
Easy to operate
Tablet or mobile phone wireless control, simple logic, can learn programming in 15 minutes.
Does HK5404 require a specific AC voltage to work?
HK5404 can work with 110V to 240V AC power outlets. You do not need to adjustment for it to work.
What are the protocls?What about interface? Does it have modbus tcp or rs232 or else?
Self-defining.
Tcp or rs232 rs485
How to control it? Does it use some communication interface? Profinet? To comunicate with siemens plc?
You can control the robot by TCP/IP or wifi. Also you can connect your PLC with the robot by 24V signal.
We have 24v digital signal for input and output. For example, you can send one 24v signal to the robot, and the robot will go to the position defined before.
Do you provide warranty on the robots?How about your after sale service?
1 year warranty.If you have any problem with the robot or its accessories, please contact us at Laurel@hulkbot.com and we will provide assistance at the first time.We will collaborate with customers to develop suitable proposals and quickly upgrade production lines.By providing customers with professional maintenance service and online support to ensure customers worry-free.The assurance of low-loss and high-quality accessories is necessary. Periodic return visits will help us realize the usage of customers,so that the products can meet the needs of customers better.
How to use HK5404 if I know nothing about any programming language ?
Hk5404 is designed with easy programming.To make a program using HK5404 software, you can add commands one by one using the interactive command interface, by filling in your desired parameters.
