5 Dof Programming Robotic Arm

Name: 5 Dof Programming Robotic Arm
Brand: Hulk Robot
Price: 1 USD

Best 5 Dof Programming Robotic Arm wholesale

Brand Name : Hulk Robot

Model Number : HK5404

Certification : CE/ISO9001/IPMS

Place of Origin : Suzhou China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 200 sets per month

Delivery Time : 21 work days

Packaging Details : Fill around the cardboard box with foam

Product name : Educational robotic arm,Stem robot,Educational manipulator

Degree of freedom : 5

Production version : Open-source

Purpose : Academic,Educational,Learning,Training,

Package dimension : 680 * 640 * 380mm (L*W*H)

Single Net weight : 13 kg/28.67 lb

Single Gross weight : 20 kg/44.01 lb

Color : Green or Customized

Max Payload : 0.01~1kg

I/O : 5, can be extended by 16 I/O

Repeat position accuracy : ±0.05mm

Voltage rating : 220V

Contact Now

5 Dof Open Source Programmable Robotic Arm For Educational Purpose

Product description

This 5 Dof Open Source Programmable Robotic Arm For Educational Purpose is a 5 DOF open-source mini-industrial robotic arm for education. It provides an ideal robotic learning platform for higher education, R&D laboratories, makers and professional training users. We have our own programming software that we can use on android tablets. We can use our own programming instructions, as well as support for Scratch style programming instructions.
Available to developers: C++, C#, and later Java, python.

Features
5DOF structural design,more flexiable
Free Android control software

Programming language: C++, C#
Repeat positioning accuracy 0.05mm,more accurate.
Provide detailed user manual to learn how to programe and operate robotic arms
Offer a complete set of spare parts to assemble and learn about automatic transmission and robotics

Ideal for market&students

Technical parameter

Model	HK5404
Maximum working radius	540mm
Number of axis	5
Installation	Floor / desktop
N.W/ G.W	13kg/20kg
Repeat Positioning Accuracy	±0.05mm
Maximum Load	1kg
Power Consume	0.4KVA
Power supply	Input:Single phase 110V-240V 50Hz Output:DC 24V(400W)
Voltage rating	220V 50 Hz
External communication	WIFI/Ethernet
Application	Industry, Academic, Teaching, Education
Safety standard	ISO 9001-2015
Control software	Hulkbot Studio
Drive System	Steper motor
Working condition	-10°C~60°C
I/O	Input 5/Output 5,can be expanded by 16

Working rang of each axis

Axis	Working Range	Max Speed
Axis 1	±160°	360°/s
Axis 2	-42°~85°	360°/s
Axis 3	-20°~100°	360°/s
Axis 4	±165°	500°/s

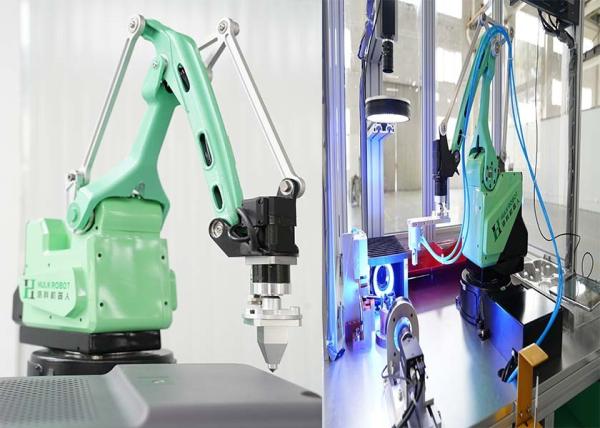

Detailed images
5 Dof Programming Robotic Arm
